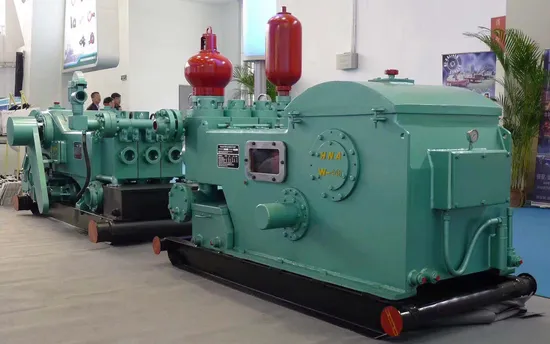

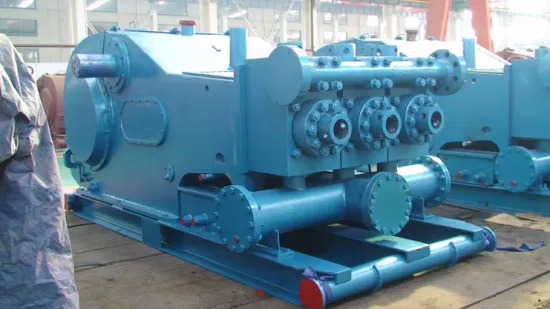

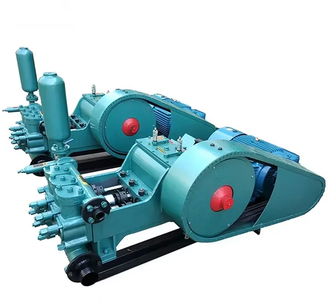

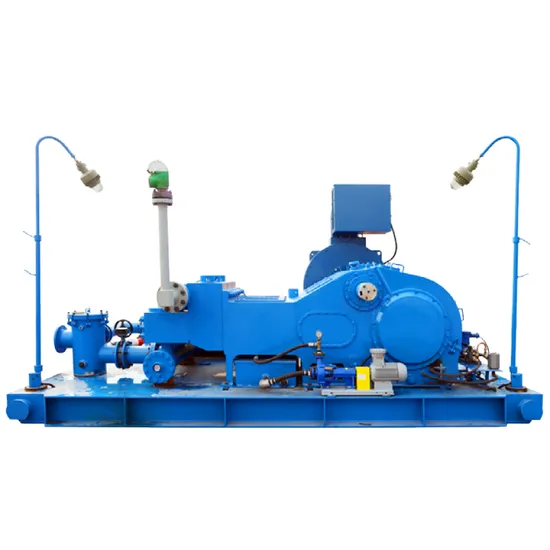

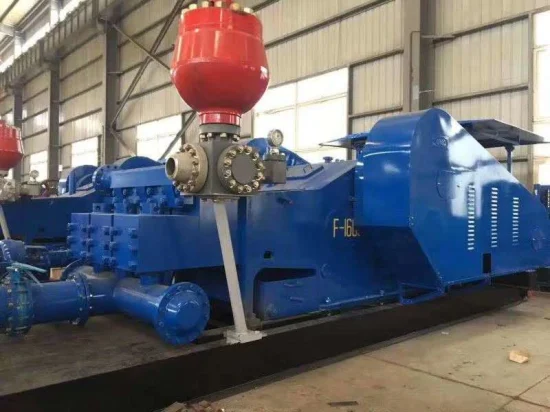

High-performance triplex mud pumps engineered for demanding oil and gas drilling operations, ensuring reliability and operational efficiency.
Manufactured in strict compliance with API 7K standards, guaranteeing exceptional performance and safety in all drilling applications.
Features a robust, welded steel plate frame and forged alloy steel crankshaft for maximum durability under high-pressure conditions.
Designed with fully interchangeable liners, pistons, valves, and other fluid end parts, ensuring compatibility with major industry-standard pumps.
Utilizes a combined forced and splash lubrication system to significantly extend operational life and reduce maintenance downtime.

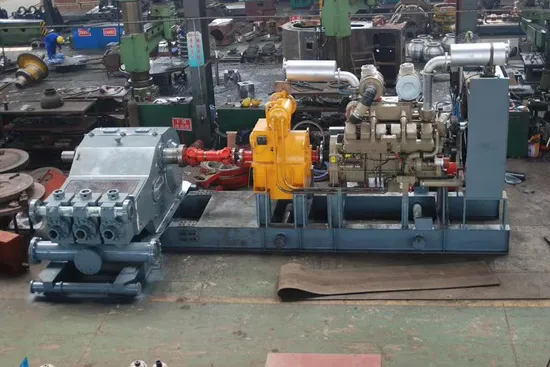

Power options are versatile, supporting both electric motors and diesel engines to meet diverse operational requirements on-site.
Pump Type: Triplex Single Acting Piston
Maximum Power: 1600 HP (1193 kW)
Maximum Stroke Length: 12 in (305 mm)
Maximum Cylinder Liner Diameter: 7 in (180 mm)
Maximum Working Pressure: 5080 PSI (35 MPa)
Gear Type: Herringbone for smooth and reliable power transmission
